TRN WAVE
Portable Bluetooth Decoder Earphone Amplifier
Qualcomm QCC3095 Chip
|
Dual-Chip DAC Decoding CS43198
LDAC
|
aptX HD
|
aptX
|
SBC
|
AAC
|
LE Audio
|
LC3
Product images are for reference only. The actual product may vary.
Pursuing an awe-inspiring and authentic sound experience
Redefining the new wave of Hi-Fi aesthetics
TRN Wave brings together refined acoustic engineering and minimalist industrial design in one compact form. From the three-color status indicator and Bluetooth 6.0 connectivity to dual-chip decoding and dual-output versatility, every detail is designed to deliver a more intuitive and immersive Hi-Fi experience.

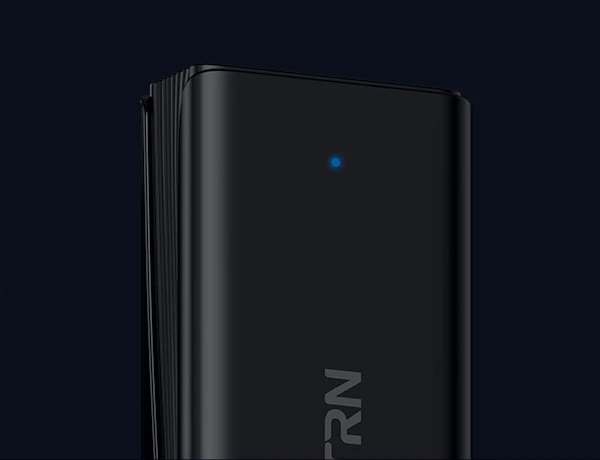

Three-color status indicator light
USB Audio Output
Authentic sound reproduction for a master-grade audio experience.
Dual-Chip DAC
Dual-channel, low-power, high-performance DAC decoding with dual CS43198 chips.
Qualcomm Chip
QCC3095 flagship Bluetooth chip for lossless wireless transmission.
Bluetooth 6.0
More than just transmission. Intelligent connectivity for a more stable listening experience.
3.5mm + 4.4mm Dual Output
Dual headphone outputs with 3.5mm single-ended and 4.4mm balanced ports.
Multi-Function Buttons
Simple operation for an effortless user experience.
Smart connectivity is as stable as listening to waves
Bluetooth 6.0 says goodbye to signal interruption
TRN Wave adopts the latest Bluetooth 6.0 core specification released by the Bluetooth SIG, comprehensively enhancing the foundational capabilities of wireless connectivity. Bluetooth 6.0 employs new channel-scanning technology that proactively detects interference from Wi-Fi and other wireless signals, such as radar, automatically switching to cleaner channels. Its effective range is four times that of the previous generation, with significantly improved interference resistance.
Support LDAC / aptX HD / aptX / SBC / AAC / LE Audio / LC3

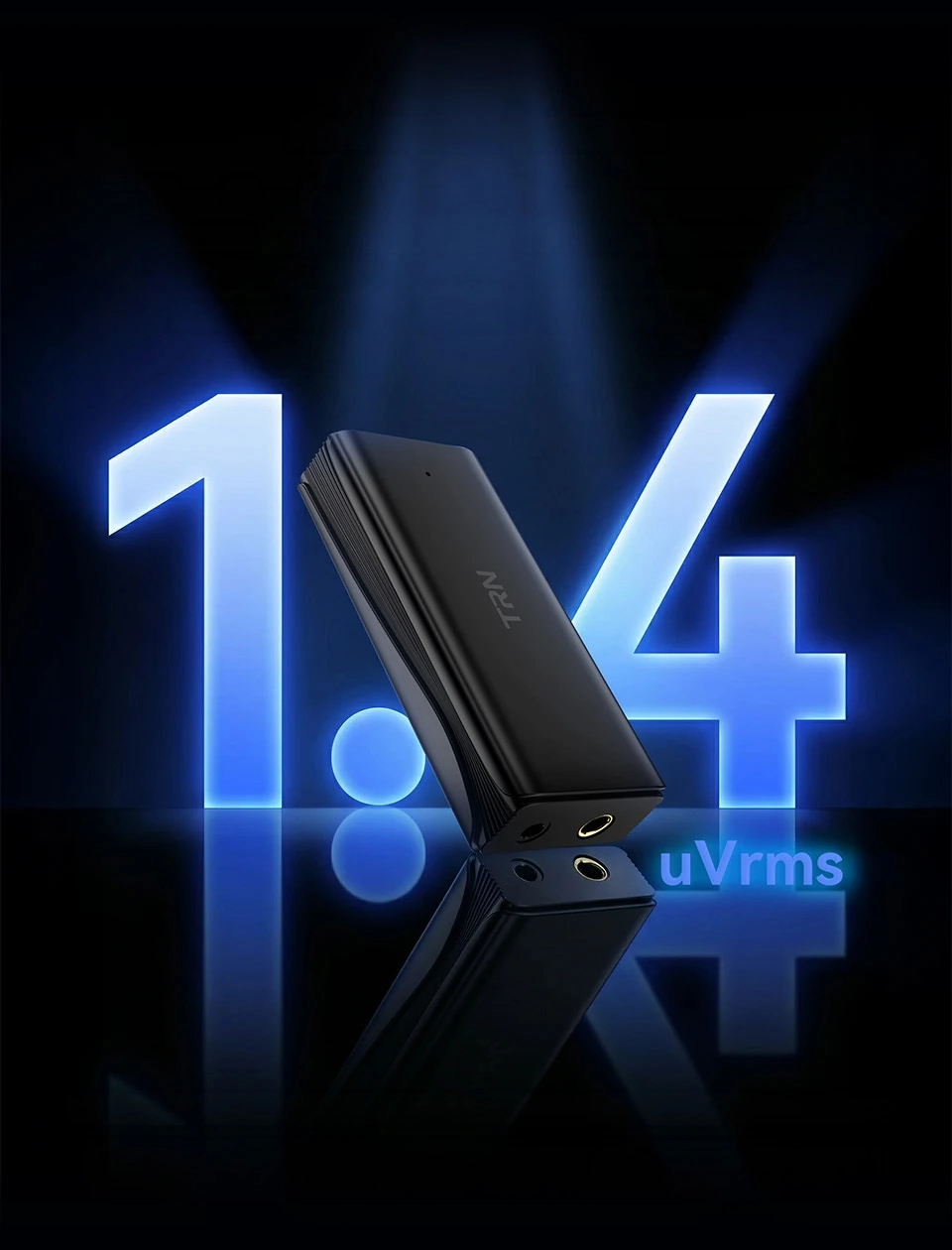

Noise ends here
Purity begins with the wave
3.5mm single-ended output noise floor = 1.4μVrms
4.4mm balanced output noise floor = 1.7μVrms
With the TRN Wave, background noise is reduced to an almost inaudible level, even at low volume late at night or with high-sensitivity earphones. The sound remains free from background interference, allowing its full character, texture, and layering to come through with clarity. Removing electronic noise lets you focus on the music's emotional expression without distraction.
Dual-core surge lossless sound
Hi-Fi efficient decoding
TRN Wave is a portable high-definition audio decoder and earphone amplifier featuring the Qualcomm QCC3095 chip paired with dual CS43198 DACs and a BT6863 op-amp architecture. This flagship dual-chip design operates in fully independent differential mode, achieving low baseline noise and an ultra-high dynamic range for true, fully balanced decoding. The QCC3095, a next-generation Bluetooth audio SoC, employs Qualcomm's adaptive algorithm to intelligently maintain stable connections and prioritize audio quality in complex environments.

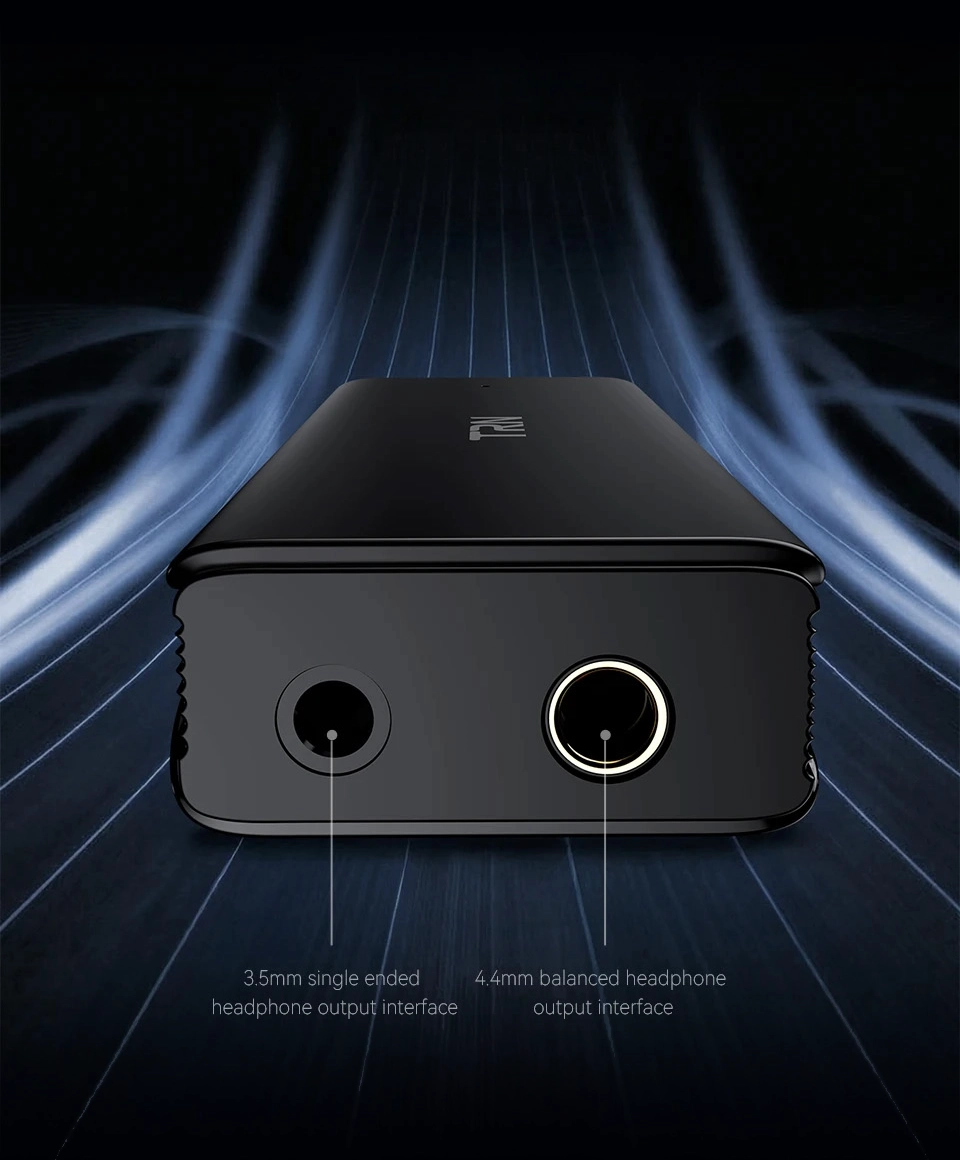

Dual-port versatility
Universal compatibility
The TRN Wave features both a 3.5mm single-ended port and a 4.4mm fully balanced port. This dual-port design indicates two independent amplification circuits within. The 4.4mm balanced output utilizes differential signals to deliver double the voltage swing, lower crosstalk, a blacker background, and a more expansive soundstage. The 3.5mm single-ended output offers a uniquely tuned character, providing a more relaxed and natural listening experience.
3.5mm interface high-definition calling
Note: Do not use both the 3.5mm and 4.4mm earphone jacks simultaneously.

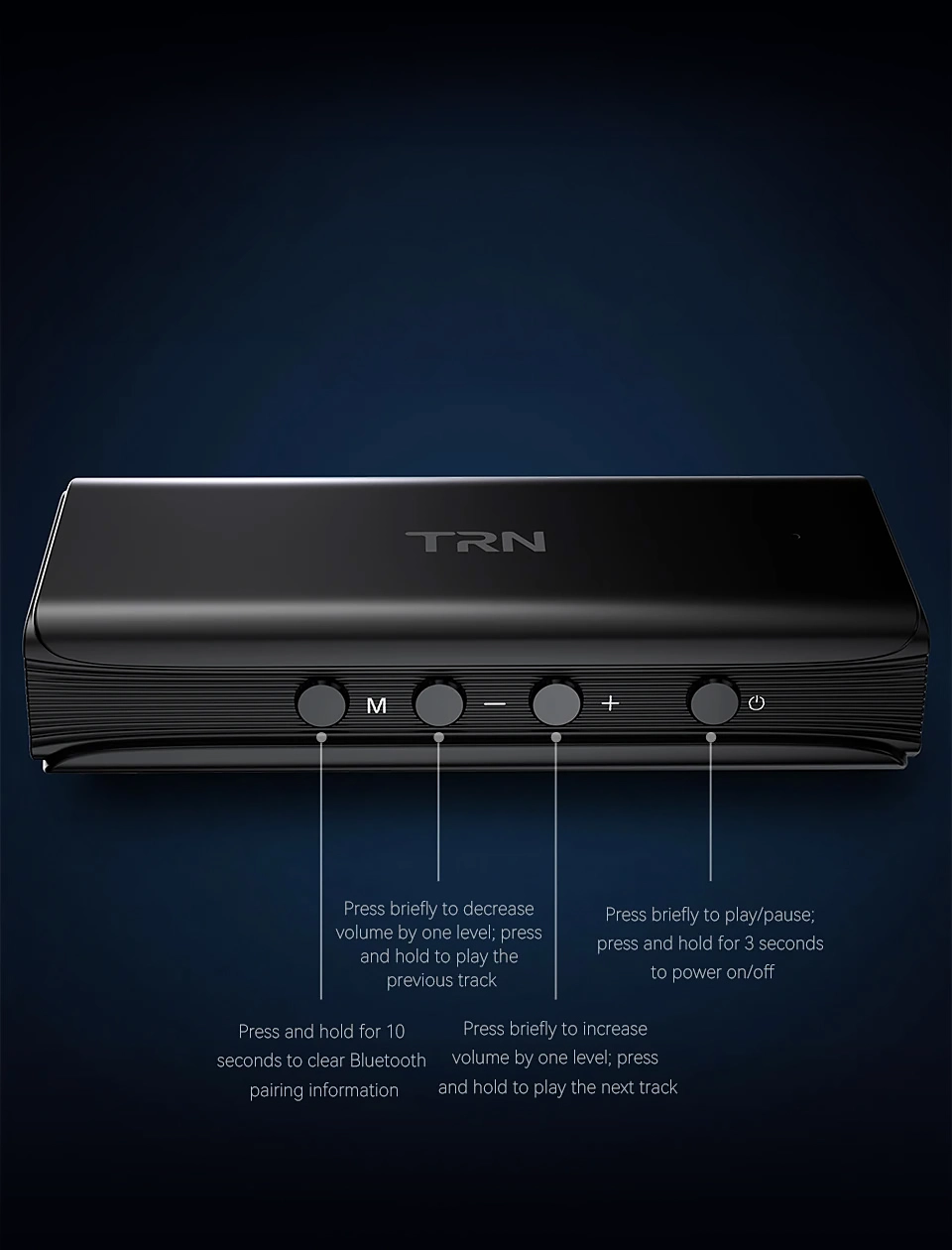

Control at your fingertips
Music flows from your touch
Four physical buttons form the intuitive control center built into the TRN Wave for your convenience. It simplifies complexity, allowing you to complete every operation instantly, with no need to take your eyes off the scenery or your mind off the music. Clearly arranged into distinct functional zones, it embodies a minimalist design aesthetic.
Note: Does not support wired microphone button functions.

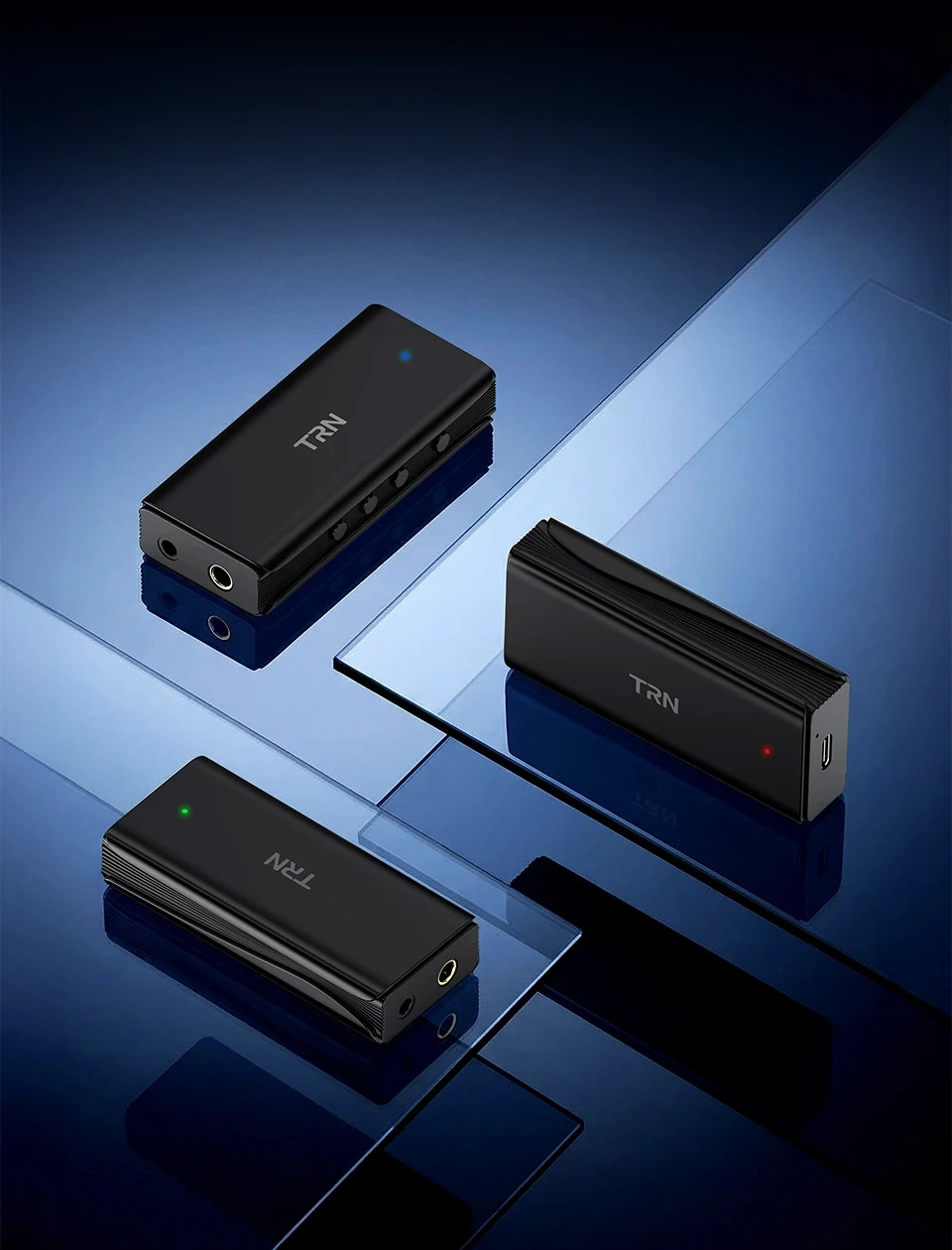

Three-color status indicator
The TRN Wave conveys core status information in a minimalist and intuitive manner. A green light indicates pairing mode, a red light indicates charging, and a blue light illuminates during calls. It silently yet clearly communicates the device's status, transforming complex technological states into instantly understandable information for daily use, making every interaction effortless and reassuring.

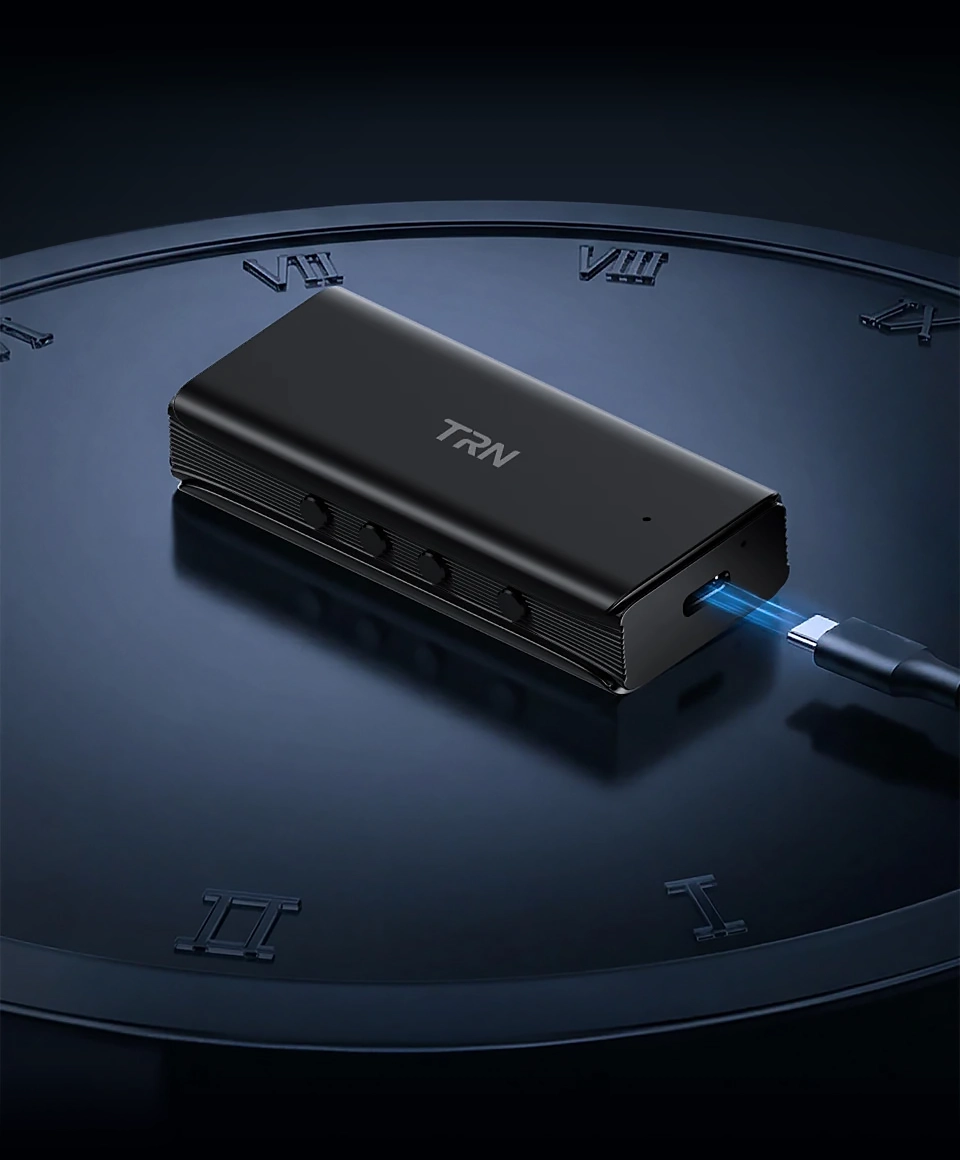

One-week recharge, unlimited listening
The TRN Wave battery life provides 10–15 hours of playback, depending on volume levels. This covers a wide range of scenarios, from heavy daily use to intermittent use over multiple days. For most users, a single charge over the weekend will suffice for commuting and leisure listening throughout the entire workweek.
Specifications
Supported specifications:
THD+N 3.5:
0.0002% (20Hz~20kHz A-weighted)
THD+N 4.4:
0.0003% (20Hz~20kHzA-weighted)
SNR 3.5:
128dB (20Hz~20kHz A-weighted)
SNR 4.4:
132dB (20Hz~20kHzA-weighted)
Noise Floor 3.5:
1.4μVrms (20Hz-20kHz A-weighted)
Noise Floor 4.4:
1.7μVrms (20Hz-20kHzA-weighted)
